Engineered for switching
The Integral R1 is a versatile wireless relay engineered for effortless integration into smart control systems. Designed for high-performance switching, it supports up to 10A output, ensuring reliable operation of high-power loads. Equipped with three push-button inputs, it provides flexible manual control alongside advanced automated wireless functionality through Casambi. The R1 is part of the Integral range of controllers offering miniaturised design and expansive control of DALI,Phase-dim, Relay and PWM luminaires.
Integral R1 product features
Control
With a wide 100-277VAC power input, the Integral R1 provides on/off control for up to a 10A output with 250A inrush allowing connection of high inrush devices like LED lighting. Three push button inputs allow control of scenes, dimming, on/off programming through Casambi.
Compact

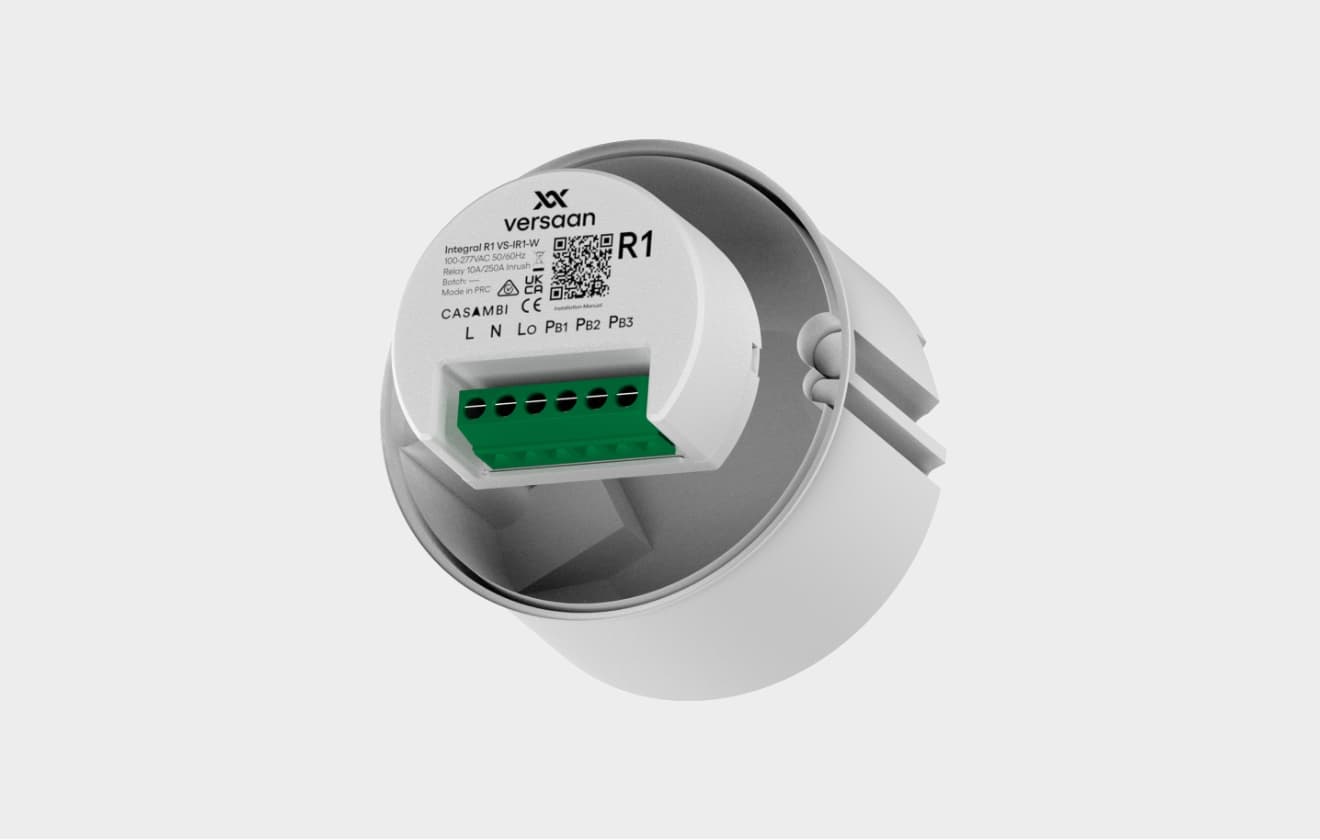

Boasting a small form factor the R1 fits into switch boxes allowing easy connection to traditional push buttons switches.
Versatile
The Integral Surface Kit allows any Integral product to be surface mounted while also providing strain relief with the built-in snap cable clamp. Two M3 screws are secured below the Integral during installation providing a streamlined aesthetic.
Identify
The built-in LED indicator makes identifying the R1 effortless. Useful when pre-commissioning Casambi networks before product is sent to site or when more than one Integral product is installed in the same switchbox.
Explore
Explore the Integral range, a comprehensive control solution featuring DALI, Phase-dim, Relay, PWM, and Push Button control—all seamlessly integrated into a single enclosure architecture. Designed to provide complete control of luminaires with support for multiple dimming and control types in residential and commercial projects.
Product Downloads
Download product specifications, install manuals, and Casambi profiles here. Select your product to access the latest resources and enhance your experience. If you need assistance, our support team is ready to help. Happy downloading!
